Web Access Module

Our developed module is an extention for the Optris XI thermal imager series which allows to use those USB-cameras as an integrated stand alone system. Our module provides generic image processing and thermal calculations to generate alarms based on preset conditions. It colors, enhances the image and streams it over network, and it can be integrated in video management systems. This module is used for thermal observation and fire prevention.

Image Processing

The system is based on a thermal imager for the data aquisition and transformations the raw data into corrected temperature information
It calculates absolute and relative temperatures from the defined region of interests (ROI)
With predefined rules, warning and alarms will be calculated

Embedded

Embedded Linux management and setup
The system can be updated via web server
It has a modular software structure with Docker containers

System Hardware

There are two hardware versions of this system

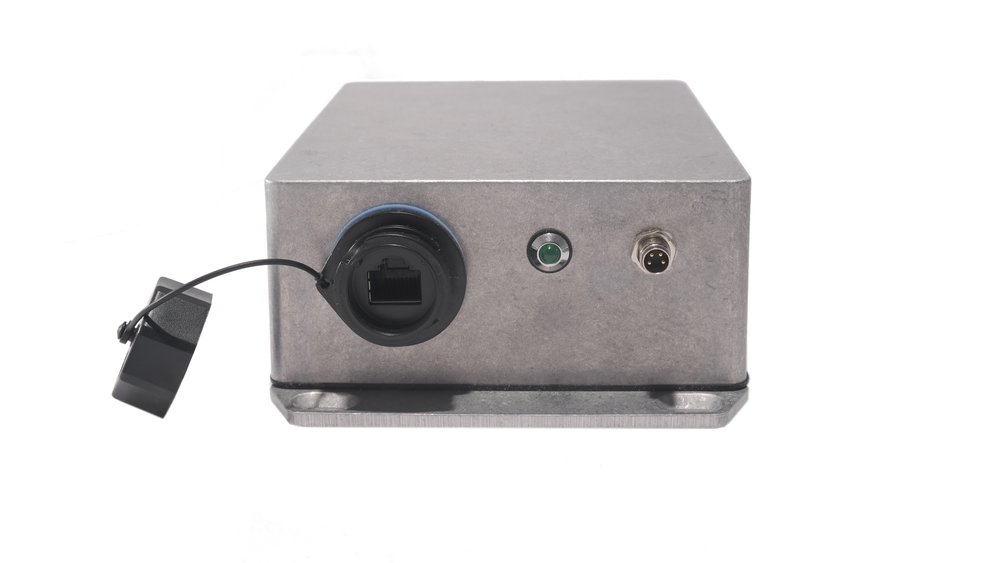

Cost effective solution with IP65 processing box and a separate IP67 thermal camera
Environment robust solution where everything is integrated into a camera enhousing

Both versions are stand-alone systems with all system hardware integrated
Both versions are powered over Ethernet (PoE)
I/O Board allows to integrated to different external systems

Interfacing

The web interface allows the user to setup and observe the system
A low latency MJPEG camera stream is available via network which can be integrated into a video management system (VMS)
An own developed hardware is included which is prodiving hardware outputs for an automation system
Also TCP based REST and Socket interfaces are existing for an extensive connectivity
